FIBER LASER MARKING SYSTEMS

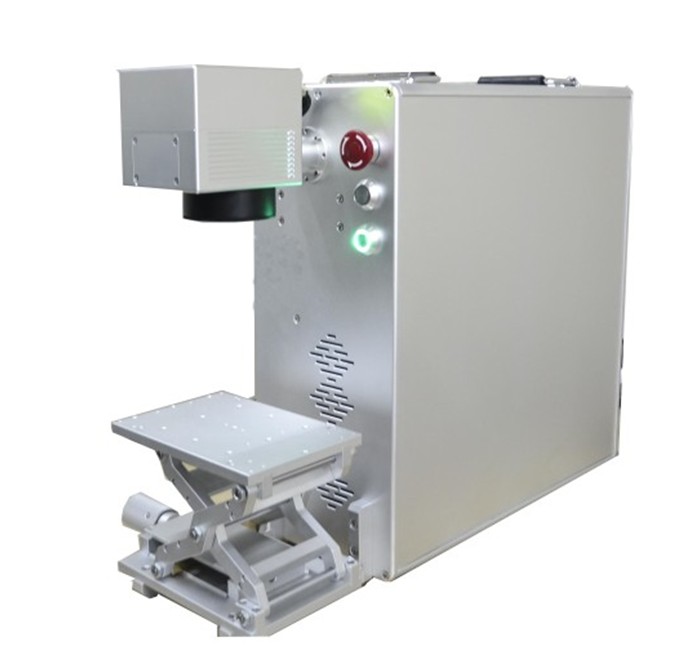

BODOR    BML10FP / BML20FP







  BODOR BML-F series fiber laser marking machine is the 3th-generation laser marking machine which is manufactured by the most advanced laser technology in current of the world.


  The quality of laser beam is very good(near to the limit of diffraction, exporting TEM00 fundamental transverse mode,  M2  near to 1,expanding angle of laser beam is only 1/4 of the diode laser marker), Therefore it is  very  suitable for delicate marking.


  With high repeat frequency of the pulse,power output steadily,energy surge of single pulse is lower than 1%, BML-F can achieve high speed marking,and control the depth and shape of the facula .


  The processing speed of BML-F is 2-3 times than the traditional marking machine.


  Air cooling, the size of the machine is very small.


Long life, ultra-low power consumption, the conversion efficiency is more than 30%,the unit power of the machine is no more than 0.5kw!

Technical Specifications :


Laser Power                                    -  10W  /  20W

Laser Wavelength                            -  1064nm

Q-frequency                                     - 20KHz~30KHz

Divergence                                       -  0.3mard

Marking Range                                 - 100 x 100mm( optional 200 x 200mm )

Minimum Line Width                         - 0.02mm

Minimum Character                          -  0.15mm

Marking Depth                                   -  0 ~0.5mm

Engraving Line Speed                       -   ≤7000mm/s

Repeatability Accuracy                      -  ±0.001mm

Beam Quality                                     -  M2:1.2~1.8

Marking Format                                  - Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date,Batch Number,Serial Number,Frequency,etc.

Graphic Format Supported                -  bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.

Working Voltage                                 -  220V±10%/50Hz/4A

Unit Power                                          -  <0.5kw

Use of the Environment                      - Clean and Dust Free or Dust less

Working Condition:Humidity                -   5%-75%,Free of Condensed Water

Laser Module Life                                 - >100000 hours
