Controlling with CncGraF Windows

cncGraF Windows USB is executable on Windows computers and possesses comprehensive functions for the complete controlling of the AutoGrav CNC machines. By an optimized control of the stepping motors higher speeds (up to 30%) are attainable in relation to other CNC controls. Owing to the multitasking function of current Windows operating systems is a fast and comfortable program change between the cncGraF and other applications (e.g. eSIGN, AutoCAD or CorelDraw) possible. While the machine works, you can provide already new engraving or milling data or edit existing files. cncGraF Windows recognizes the changes and reload the new informations automatically.













Details

  • simultaneous moving of 4 axes
  • import: HPGL, DXF, ISEL NCP, EPS, AI, DIN66025, Excellon, Sieb & Maier 1000/3000

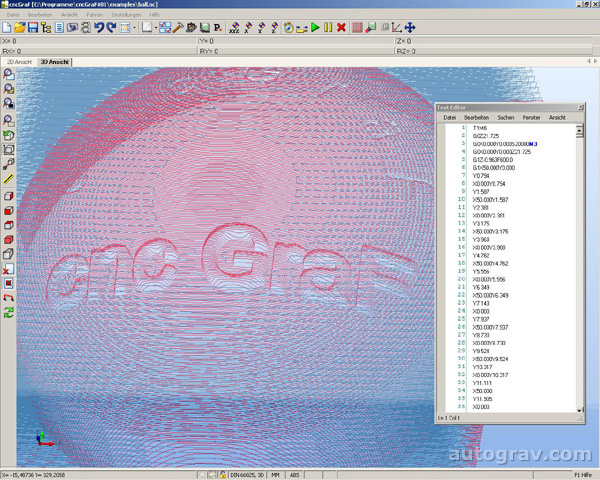

  • real 3D processing of DIN66025 files

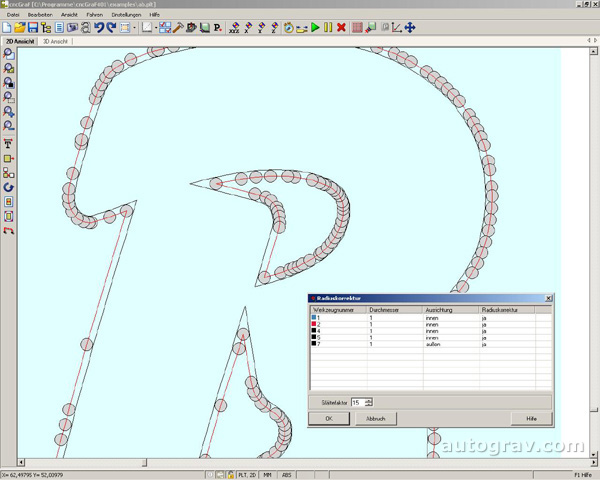

  • radius correction with graphical preview
  • integrated editor with text highlighting
  • manage multiple zero points, park and measuring positions
  • scanning for height correction. export and import of scan data
  • motor power lowering for all axes in idle mode
  • free waiting time after tool immersion
  • stop of treatment / continue with repeat of the last or defined vector
  • optimization with smoothing of tool pathes
  • tracing and vectorizing of Windows fonts and b/w pictures
  • axes positions and progress informations
  • TeachIn with spline funktion
  • full adaption of speed and curves pathway

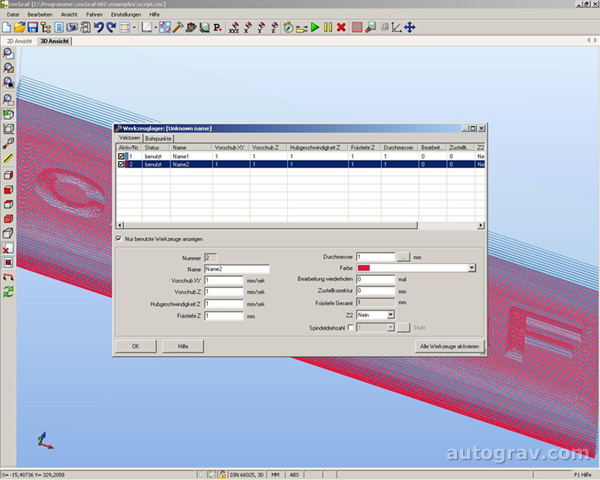

  • variable/changeable tool order and direction
  • automatic tool changing with tool measuring
  • graphical preview and simulation
  • co-ordinate system in millimeters or inch
  • cutting of board, foam, fabric, balso with oscillating tangential cutter
  • integrated radius correction for swivel cutter
  • work area supervision
  • time valuation before treatment
  • double drive control for all axes X2, Y2 or Z2 (firmware V.15)
  • deactivating/hiding of unused functions (e.g. for training and education)

Try the free demo of cncGraF Windows.

Languages:

English, German, Spanish, Portuguese, Polish, Dutch

Minimum requirements:

Windows 2000/XP/Vista (Ultimate 32bit), Microsoft .NET Framework V2.0 (free from Microsoft), Pentium 1Ghz CPU (resp. equivalent), CD-ROM Drive, free USB 1.1/2.0 port
